Precision. Performance. Productivity. Up to 30m/min.
ARIES features a high-performance semi-rotary module with a magnetic cylinder and flexible steel dies. In a single pass, it laminates, die cuts, removes excess matrix, slits and rewinds finished label rolls — at speeds up to 30m/min.
The magnetic die plate snaps quickly and securely into place for fast changeovers. The entire module is electronically adjustable for precise offset calibration, and the 10" touchscreen provides full remote connectivity and control. ARIES handles both printed and unprinted media rolls, making it the ideal companion to digital color label printers and presses of any kind.
Speed, precision and modularity — built for converters who need consistent quality at volume.
ARIES runs at up to 30 metres per minute, making it one of the fastest semi-rotary label finishers available for medium to industrial-scale production runs.
Flexible steel dies mount on a magnetic cylinder with four alignment pins. Fast, precise changeovers — the die plate snaps securely into place, minimizing downtime between jobs.
ARS1xxx handles web widths up to 250mm. ARS2xxx extends to 350mm with pneumatic core, Gap Reset and support for varnish and corona treater retrofit modules.
Built-in cold lamination (self-wound or with liner) adds durability to finished labels — no need for a separate laminator or special pre-laminated media.
Optional retrofit varnish modules (ARS2xxx) support flood or spot UV varnish and cold foil application — adding premium finishing and extra value to your labels in-line.
Runs on just 1kW single-phase power. The 10" touchscreen interface allows operators to manage all job settings, offsets and speed with minimal training.
ARIES is a high-performance semi-rotary label finishing machine by D.P.R. srl, engineered for medium to industrial-scale production. In a single pass it laminates, die cuts using flexible magnetic steel dies, removes waste matrix, slits and rewinds finished label rolls at speeds up to 30m/min.

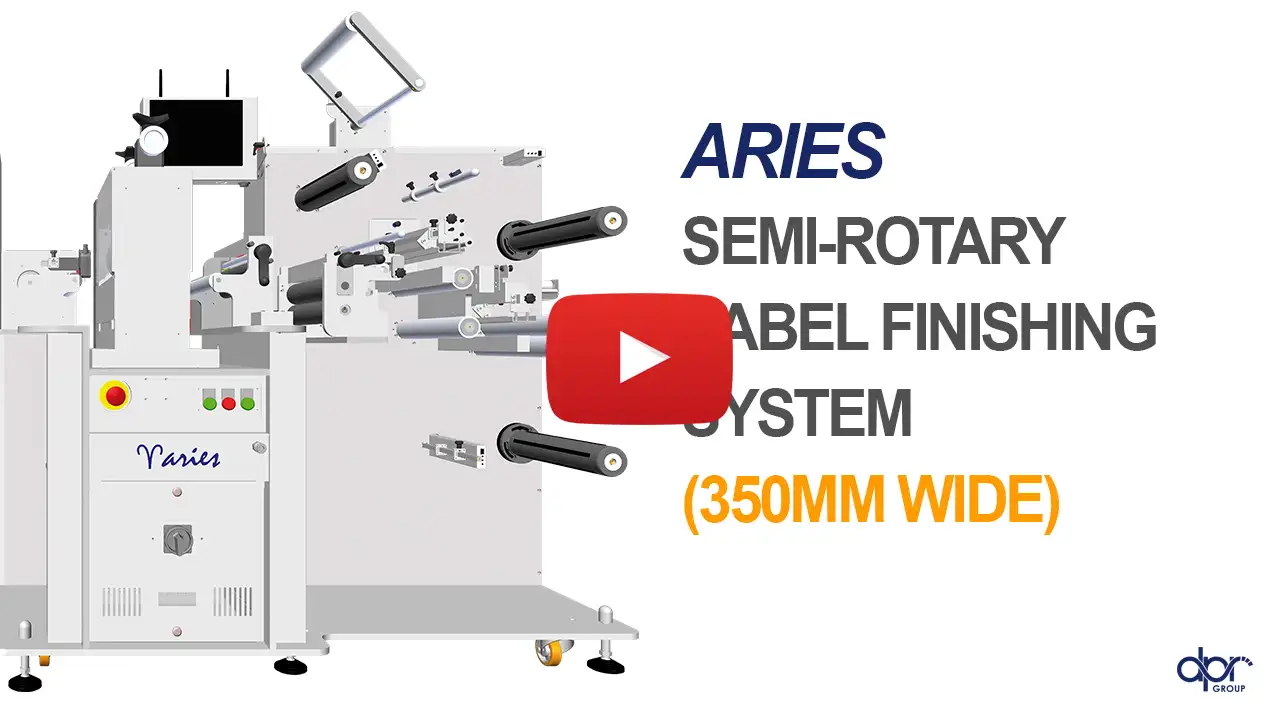

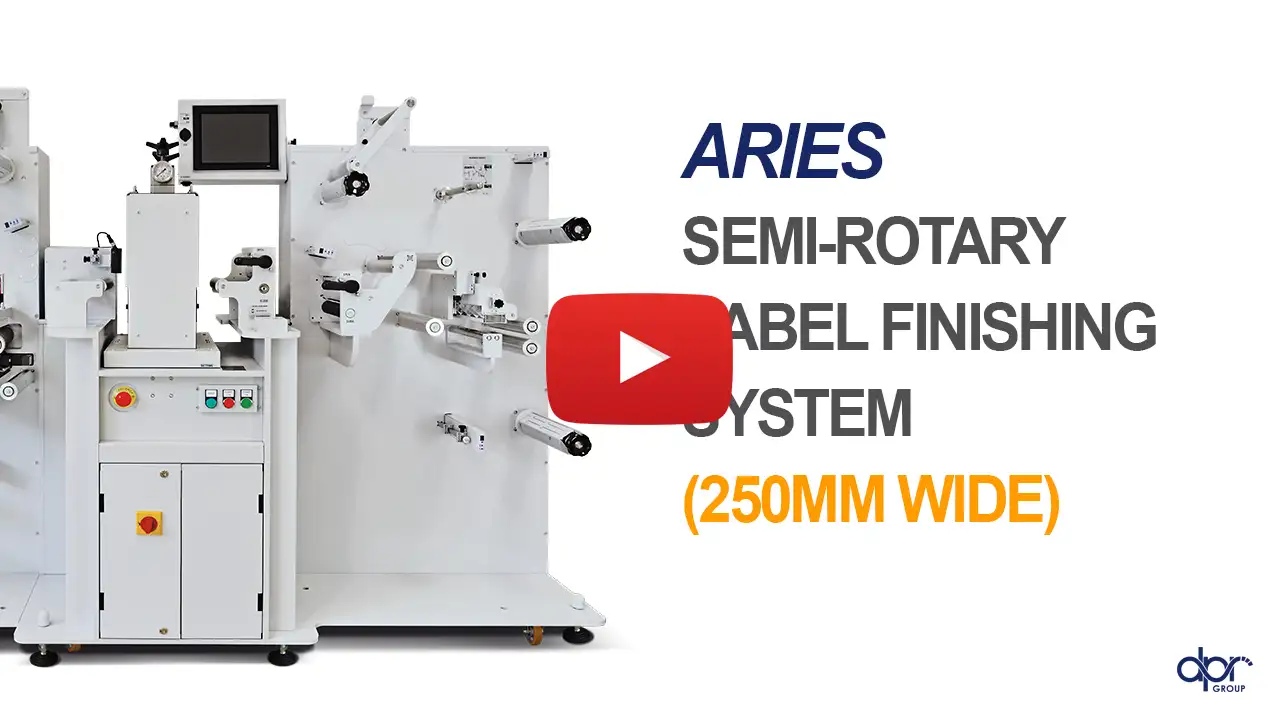

The ARS1xxx handles web widths up to 250mm (9.84") with a mechanical 3-inch core and a maximum die cutting width of 230mm. The ARS2xxx handles wider media up to 350mm (13.78") with a pneumatic 3-inch core and a maximum die cutting width of 330mm. The ARS2xxx also supports the Gap Reset adjustable anvil system, varnish modules and corona treater as retrofit options.
Yes, ARIES uses flexible magnetic steel dies mounted on a magnetic cylinder with four alignment pins. The magnetic die plate system allows extremely fast changeovers — the die snaps quickly and securely into place, minimizing downtime between jobs. Die repeat ranges from 140mm to 360mm.
ARIES supports kiss-cut (half cut, leaving the liner intact) and full die cut, along with lamination using cold film (self-wound or with liner), matrix waste removal, slitting and rewinding. It handles both printed and unprinted media rolls.
Yes. The ARS2xxx model supports optional varnish modules as retrofit additions. Available options include a full rotary flood varnish module and a full rotary spot varnish module with cold foil capability, both with a flexographic station and UV lamp. A Vetaphone corona treater slot is also available.
The Gap Reset is an adjustable anvil system available on the particupar configuration model. It allows operators to adjust the height of the roller on the rotary module, enabling the same magnetic die plate to be used with media of different thicknesses without needing a different die or manual retooling.
ARIES is compatible with the most widely used digital label printers on the market, including models from Konica Minolta, Epson, HP, SCREEN and Afinia. Its modular design and wide media range make it suitable for inline or near-line integration with virtually any digital color label press.
ARIES comes with a 12-month warranty. D.P.R. offers remote assistance for internet-connected customers, enabling technicians to diagnose and resolve issues remotely and providing access to firmware updates and operational support.
The ARIES Cutting Manager is an innovative and smart cutting management software that allows operators to fine-tune every aspect of the finishing workflow — from speed and cut pressure to offset calibration — for perfect results every time.
Find out how easy it is to create and prepare files for use with our machine thanks to our video tutorials.
In today’s fast-moving market, being able to produce your own labels isn’t just a convenience — it’s a competitive advantage.
Outsourcing label finishing can slow you down, increase costs, and limit your flexibility.
Bringing the process inside your company gives you:
Lower per-label cost, Faster turnaround, Total design flexibility, Better quality control, Higher margins & scalability
